Tare Weight |
7700kg |
Overall Length |
6800mm |
Overall Width |
2480mm |
Payload |
45000kg |
I Beam & Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. |
Axle |
2 axles |
Fuwa 13 ton |
|
Suspension |
Heavy duty mechanical suspension |
Floor |
3mm checker plate |

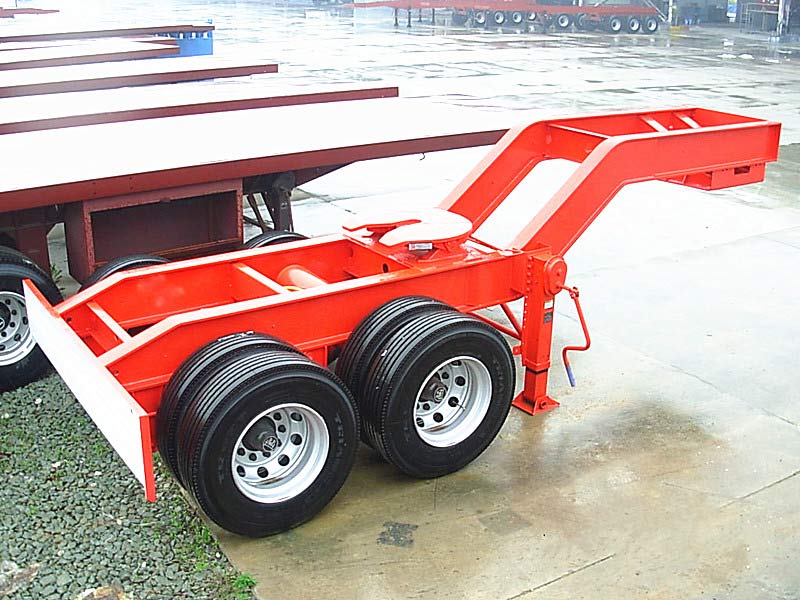

Turntable |
15T turntable |
Bar eye ring |
50mm one set |
Leaf Spring |
8 piece Leaf spring |
King Pin |
JOST brand 2” Bolt-in King Pin |
Landing Gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
Wheel Rim |
8.25-22.5 wheel rim |
Tire |
11R22.5 tire with one spare tire, 13 pieces |
Twist Lock |
4 nos. of ISO twist lock for 1x20ft container |
Spare Tire |
One set of spare tire including a carrier |
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
Painting |
Complete Chassis sandblasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
Accessories |
One standard toolbox |
